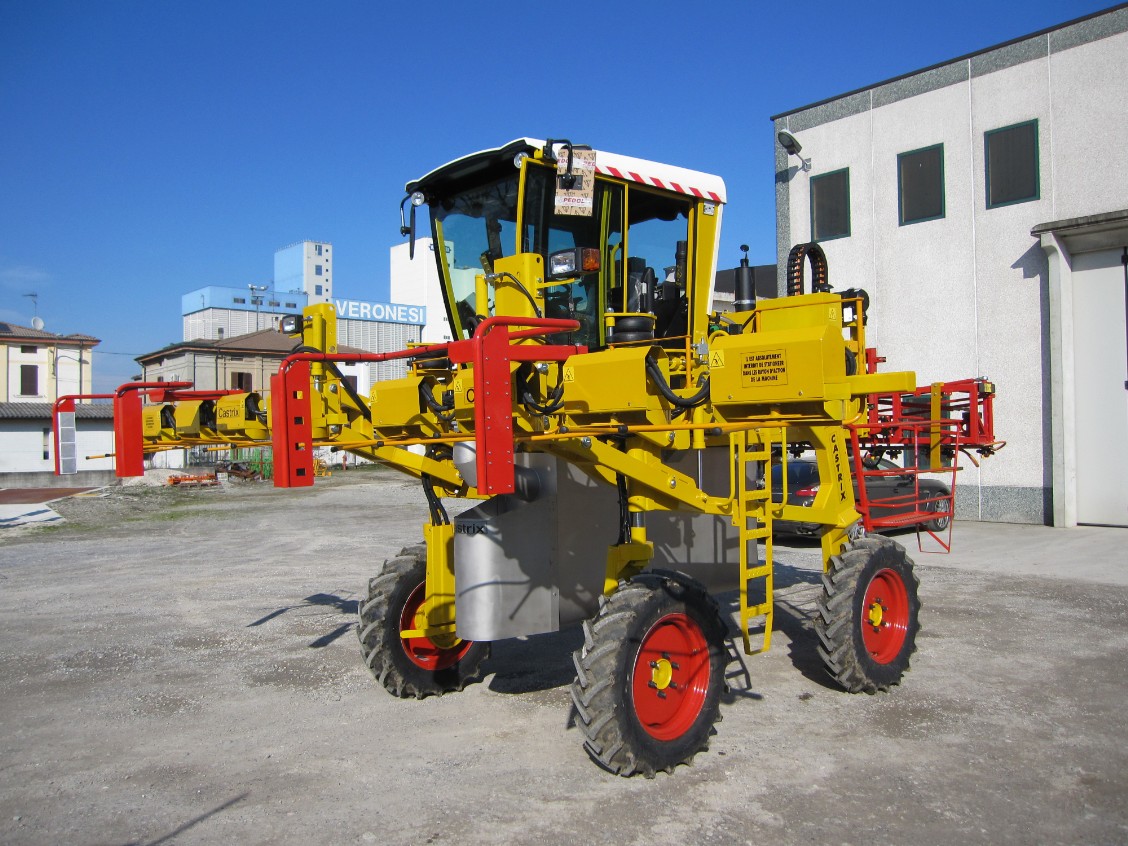

A self propelled machine on 4 driving wheels with hydrostatic traction provided by engines “Poclain” on wheels.

The variable carriageway permits the shifting of the wheels up to 100 cm simply acting on a lever.

It can be equipped with different types of detasseling bars: cut by knives, pull through discs or rollers. All bars are 3 + 3 or 4 + 4 and allow the mounting of the photocells (electronic eye) for automatic processing.
ENGINE
DEUTZ TD2011L04 57.6 kW or DEUTZ TD 2.9 55.4 kW
TRACTION
Fully hydrostatic on 4 driving wheels with radial piston hydraulic motors and Twin Lock system.
CARRIAGEWAY
Hydraulic variable from a minimum of 200 cm to a maximum of 310 cm.
STEERING
2 steering wheels (front) with hydrostatic system and power steering
HYDRAULIC OIL TANK
140 litres
SUSPENSIONS
Pneumatic
FRAME STRUCTURE
200 x 200 mm, square tubular 200×100 mm or 100 x 100 mm.
GROUND CLEARANCE
170 cm.
TYRES DIMENSION Measure 11.2-24 TT High Traction
STARTER
Electric with battery 12 V
PULLING BAR
Equipped with rollers for 6 or 8 rows (3 + 3 or 4 + 4)
CUTTING BAR
Equipped with knives for 6 or 8 rows (3 + 3 or 4 + 4)
WATER TANK
1000 liters
SPRAYING BAR
Fully hydraulic opening / closing and lifting / lowering system, 12, or 15 meters length with noozles TREJET and descents for the distribution of the product
ACCESSORIES
Photocells for automatic castration work
